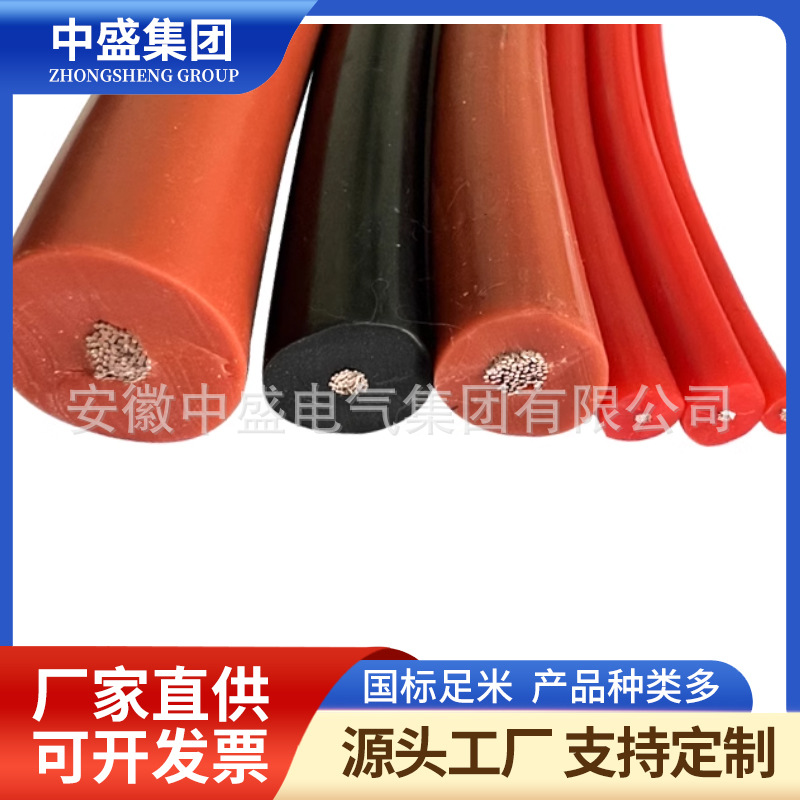

產品名稱：Silicone rubber high-voltage lineAGG-DC-25KV 6
瀏覽：
添加時間：2025-09-28 14:17:46
推薦度：

介紹：

型號：AGG Model: AGG 執行標準：Q/IRMV2-2008 Execution standard: Q/IRMV2-2008 產品特性： Product Features 1、額定電壓： 5KV、10KV、15KV、20KV、25KV、30KV、50KV、100KV 1. Rated voltage: 5KV, 10KV, 15KV, 20KV, 25KV, 30KV, 50KV, 100KV 2、工作溫度：-60～+200℃ 2. Working temperature: -60~+200 ℃ 3、導 體：絞合鍍錫銅線 3. Conductor: Stranded tinned copper wire 4、絕緣：硅橡膠 4. Insulation: Silicone rubber 5、顏色：紅/黃/蘭/白/黑/黃綠/棕等 5. Color: Red/Yellow/Blue/White/Black/Yellow Green/Brown, etc 特點/用途： Features/Applications: 具有優良的高溫耐低溫性能，具有優良的電絕緣性能，優良的化學穩定性能，耐高電壓，耐老化，使用壽命長。且柔軟便于安裝。 It has excellent high temperature and low temperature resistance, excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, and long service life. And it is soft and easy to install. 廣泛應用于煤氣點火、汽車點火、高壓測試臺、電視機、微波爐、霓紅燈、儀器儀表內部高壓、安裝連接用電子電器及其他器械的高電壓場合。 Widely used in high voltage applications such as gas ignition, car ignition, high-voltage test benches, televisions, microwave ovens, neon lights, internal high voltage of instruments and meters, installation and connection of electronic appliances, and other instruments.

Specification structure and technical parameters:

電壓等級 voltage level KV	導體標稱截面Nominal cross-section of conductor mm2	導體結 構Conductor structure	絕緣厚度Insulation thickness mm	平均外徑Average outer diameter mm	20 ℃ 時導體電阻zui大值The maximum value of conductor resistance at 20 ℃ Ω/km
電壓等級 voltage level KV	導體標稱截面Nominal cross-section of conductor mm2	根數/單線直徑Number of roots/diameter of a single line	絕緣厚度Insulation thickness mm	平均外徑Average outer diameter mm
5	0.20	7/0.20	1.00	2.60	95.0
	0.35	19/0.16	1.00	2.80	53.1
	0.50	16/0.20	1.00	3.00	10.1
	0.75	24/0.20	1.20	3.60	26.7
	1.00	32/0.20	1.30	4.00	20.0
	1.50	30/0.25	1.50	4.60	13.7
	2.50	49/0.25	1.60	5.40	8.21
10	0.20	7/0.20	1.30	3.20	95.0
	0.35	19/0.16	1.30	3.40	53.1
	0.50	16/0.20	1.30	3.60	10.1
	0.75	24/0.20	1.50	4.20	26.7
	1.00	32/0.20	1.50	4.40	20.0
	1.50	30/0.25	1.80	5.20	13.7
	2.50	49/0.25	1.80	5.80	8.21
	4.00	56/0.30	2.00	6.80	5.09
	6.00	84/0.30	2.00	7.60	3.39
