產品名稱：ZRC-YJLHY23 1.8/3KV 3×240 Aluminum Alloy Armored Power Cable
瀏覽：
添加時間：2026-05-22 09:21:21
推薦度：

介紹：

ZRC-YJLHY23 1.8/3KV 3×240 鋁合金鎧裝電力電纜

ZRC-YJLHY23 1.8/3KV 3×240 Aluminum Alloy Armored Power Cable

ZRC-YJLHY23 1.8/3KV 3×240 是一種額定電壓為1.8/3kV的阻燃C級、鋁合金導體、交聯聚乙烯絕緣、鋼帶鎧裝低壓電力電纜。該產品導體采用高導電率鋁合金材料，結合鎧裝結構設計，在保證可靠電力傳輸?shù)耐瑫r(shí)，具備機械防護性強、敷設方式靈活、綜合性價比高等特點，適用于對阻燃和機械保護有要求的配電網絡。

ZRC-YJLHY23 1.8/3KV 3×240 is a flame-retardant Class C, aluminum alloy conductor, XLPE insulated, steel tape armored low-voltage power cable with a rated voltage of 1.8/3kV. The conductor is made of high-conductivity aluminum alloy material combined with an armored structure design. It ensures reliable power transmission while offering strong mechanical protection, flexible installation methods, and high comprehensive cost-effectiveness. It is suitable for distribution networks that require flame retardancy and mechanical protection.

一、產品規格概要

I. Product Specification Summary

項目	具體描述
完整型號	ZRC-YJLHY23 1.8/3KV 3×240
產品類型	阻燃C類鋁合金導體交聯聚乙烯絕緣鋼帶鎧裝聚烯烴護套電力電纜
電壓等級	1.8/3 kV (系統最高電壓Um=3.6 kV)
芯數與截面	3芯，每芯標稱截面積 240 mm2

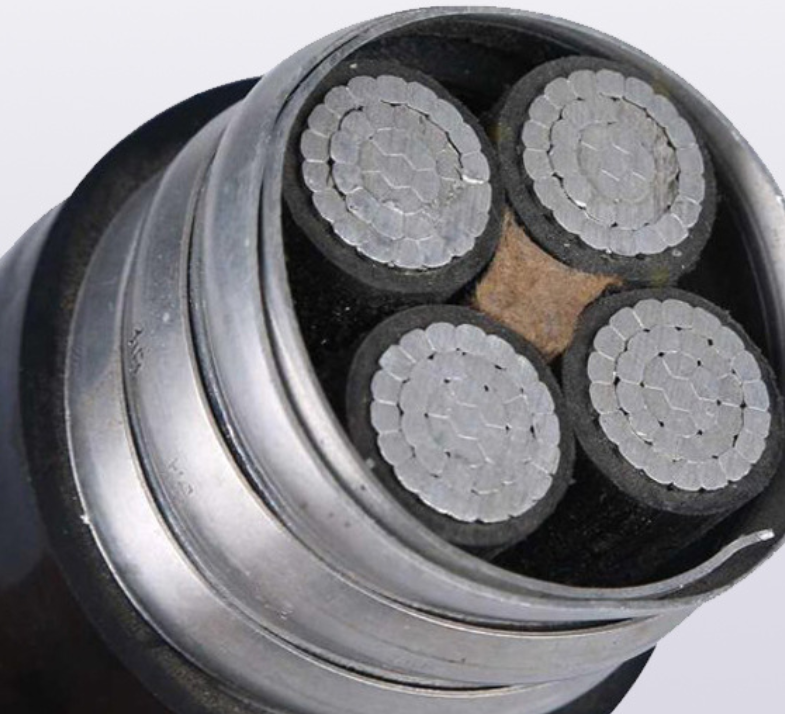

主要結構	鋁合金導體 + 交聯聚乙烯絕緣 + 內護套 + 雙鋼帶鎧裝 + 聚烯烴外護套
Item	Specific Description
:---	:---
Complete Model	ZRC-YJLHY23 1.8/3KV 3×240
Product Type	Flame-retardant Class C, Aluminum Alloy Conductor, XLPE Insulated, Steel Tape Armored, Polyolefin Sheathed Power Cable
Voltage Rating	1.8/3 kV (Maximum System Voltage Um=3.6 kV)
Core Number & Cross-Section	3 cores, each with a nominal cross-sectional area of 240 mm2
Main Structure	Aluminum Alloy Conductor + XLPE Insulation + Inner Sheath + Double Steel Tape Armor + Polyolefin Outer Sheath

二、主要技術參數

II. Main Technical Parameters

參數類別	技術指標與說明
導體材料	8030/8176系列鋁合金，經緊壓絞合處理，柔韌性與連接穩定性優于傳統純鋁導體。
絕緣材料	交聯聚乙烯（XLPE），長期允許工作溫度 ≤ 90℃，短路時（最長5秒）允許溫度 ≤ 250℃。
護套材料	低煙無鹵阻燃聚烯烴，燃燒時發煙量少，腐蝕性低。
額定電壓	適用于標稱電壓1.8/3 kV的三相交流電力系統。
參考載流量	在環境溫度30℃，導體工作溫度90℃，土壤熱阻系數2.0 K·m/W的直埋條件下，參考載流量約為350-380A。實際值需根據具體敷設條件校正。
導體直流電阻	20℃時，≤ 0.125 Ω/km（滿足GB/T標準要求）。
最小彎曲半徑	敷設安裝時，最小彎曲半徑不小于電纜外徑的12倍。
敷設方式	可直埋、穿管、敷設于電纜溝或隧道中。鎧裝層提供良好的機械保護。
執行標準	主要依據 GB/T 31840（鋁合金芯擠包絕緣電力電纜）國家標準。
Parameter Category	Technical Indicators and Description
:---	:---
Conductor Material	8030/8176 series aluminum alloy, compacted and stranded, offering better flexibility and connection stability than traditional pure aluminum conductors.
Insulation Material	Cross-linked polyethylene (XLPE), with a long-term permissible operating temperature ≤ 90°C, and a short-circuit (max 5 seconds) permissible temperature ≤ 250°C.
Sheath Material	Low-smoke zero-halogen flame-retardant polyolefin, producing less smoke and low corrosivity when burning.
Rated Voltage	Suitable for three-phase AC power systems with a nominal voltage of 1.8/3 kV.
Reference Current Carrying Capacity	Under direct burial conditions: ambient temperature 30°C, conductor operating temperature 90°C, soil thermal resistivity coefficient 2.0 K·m/W, the reference current carrying capacity is approximately 350-380A. Actual values must be corrected based on specific installation conditions.
Conductor DC Resistance	At 20°C, ≤ 0.125 Ω/km (meets GB/T standard requirements).
Minimum Bending Radius	During installation, the minimum bending radius shall be no less than 12 times the cable's outer diameter.
Installation Methods	Can be directly buried, installed in conduits, laid in cable trenches, or tunnels. The armor provides good mechanical protection.
Applicable Standard	Primarily based on the national standard GB/T 31840 (Aluminum alloy conductor extruded insulated power cables).

三、產品核心特點

III. Core Product Features

經濟可靠：鋁合金導體在滿足同等導電能力下，相比銅纜顯著降低材料成本，且重量更輕，便于運輸和安裝。
機械性能強：雙鋼帶鎧裝結構有效抵抗外部壓力、沖擊和嚙齒動物啃咬，特別適合直埋、穿管等有機械防護要求的場合。
安全阻燃：具備C類成束阻燃性能，配合低煙無鹵護套材料，能在火災發生時延緩火焰蔓延，并減少有毒煙霧的產生，提升公共場所安全性。
連接穩定：導體經過特殊退火和表面處理，抗氧化能力強，配合專用連接器，可有效解決接頭處的接觸電阻和電化學腐蝕問題。
Cost-Effective and Reliable: Compared to copper cables with equivalent conductivity, the aluminum alloy conductor significantly reduces material costs, is lighter in weight, and facilitates transportation and installation.
Strong Mechanical Performance: The double steel tape armor structure effectively resists external pressure, impact, and rodent bites, making it particularly suitable for applications requiring mechanical protection, such as direct burial and conduit installation.
Safe and Flame Retardant: Possesses Class C flame retardancy (bunched cable test), combined with low-smoke zero-halogen sheath material, it can delay flame spread and reduce the generation of toxic smoke during a fire, enhancing safety in public spaces.
Stable Connection: The conductor undergoes special annealing and surface treatment, providing strong oxidation resistance. When used with dedicated connectors, it effectively addresses issues of contact resistance and electrochemical corrosion at joints.

四、典型應用領域

IV. Typical Application Fields

新能源發電：光伏電站的集電線路、風機箱變至匯流站的低壓連接。
工業與建筑配電：工礦企業、大型商業綜合體、住宅小區的主干配電線路。
基礎設施：城市電網改造、軌道交通、機場、港口等項目的低壓供電系統。
直埋敷設場景：需要承受一定機械外力的戶外、路邊、園區內部直埋線路。
New Energy Power Generation: Collector lines in photovoltaic power stations, low-voltage connections from wind turbine pad-mounted transformers to collector stations.
Industrial and Building Power Distribution: Main distribution lines for industrial and mining enterprises, large commercial complexes, and residential communities.
Infrastructure: Low-voltage power supply systems for urban grid renovation, rail transit, airports, ports, and other projects.
Direct Burial Scenarios: Outdoor, roadside, or internal park buried lines that need to withstand certain mechanical stress.
